Madrid – Tilt Vertical Clamp Spigot

Description

Madrid – Tilt Vertical Clamp Spigot

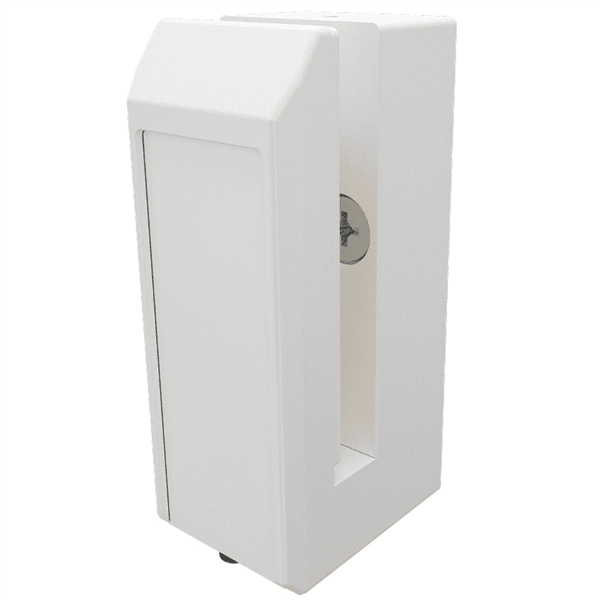

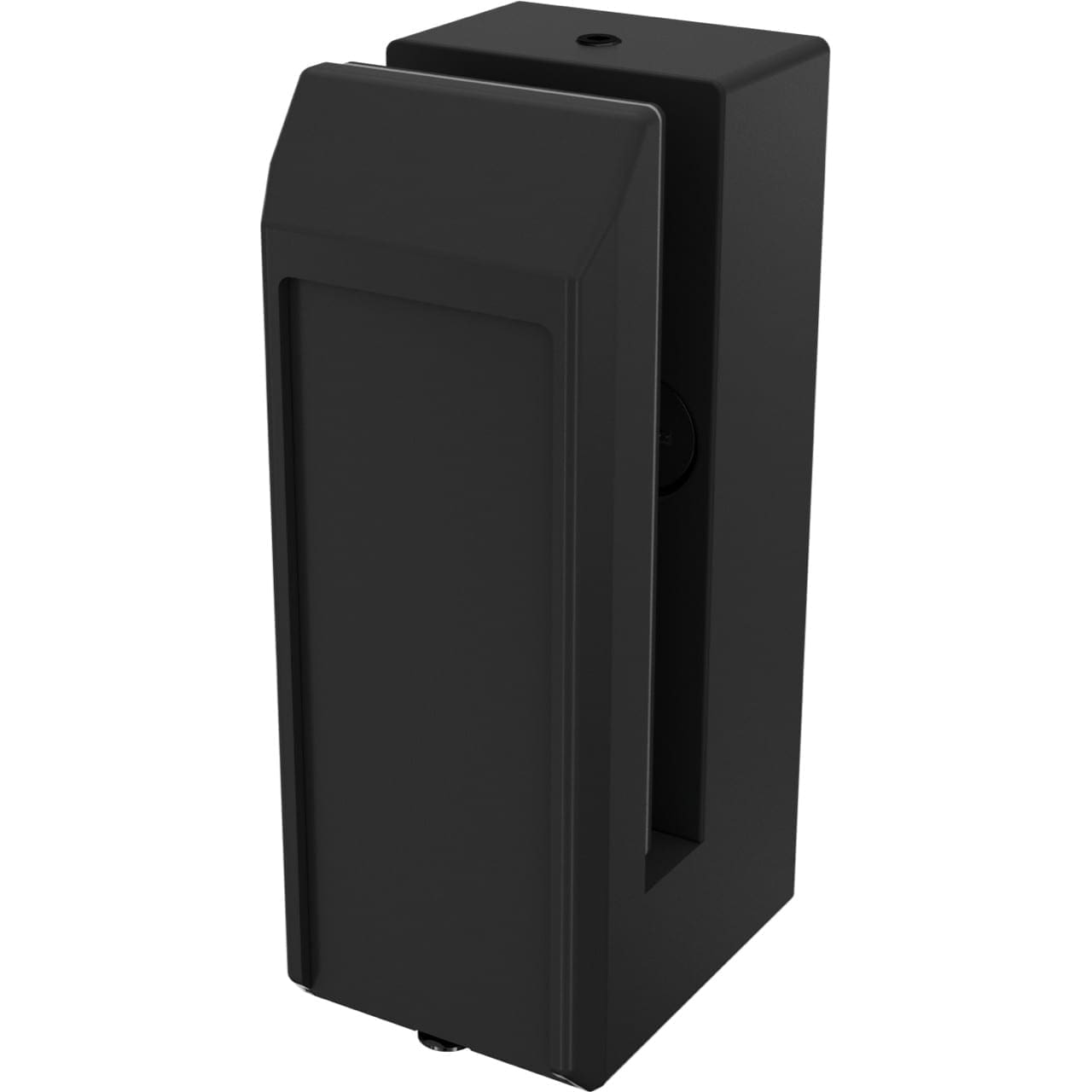

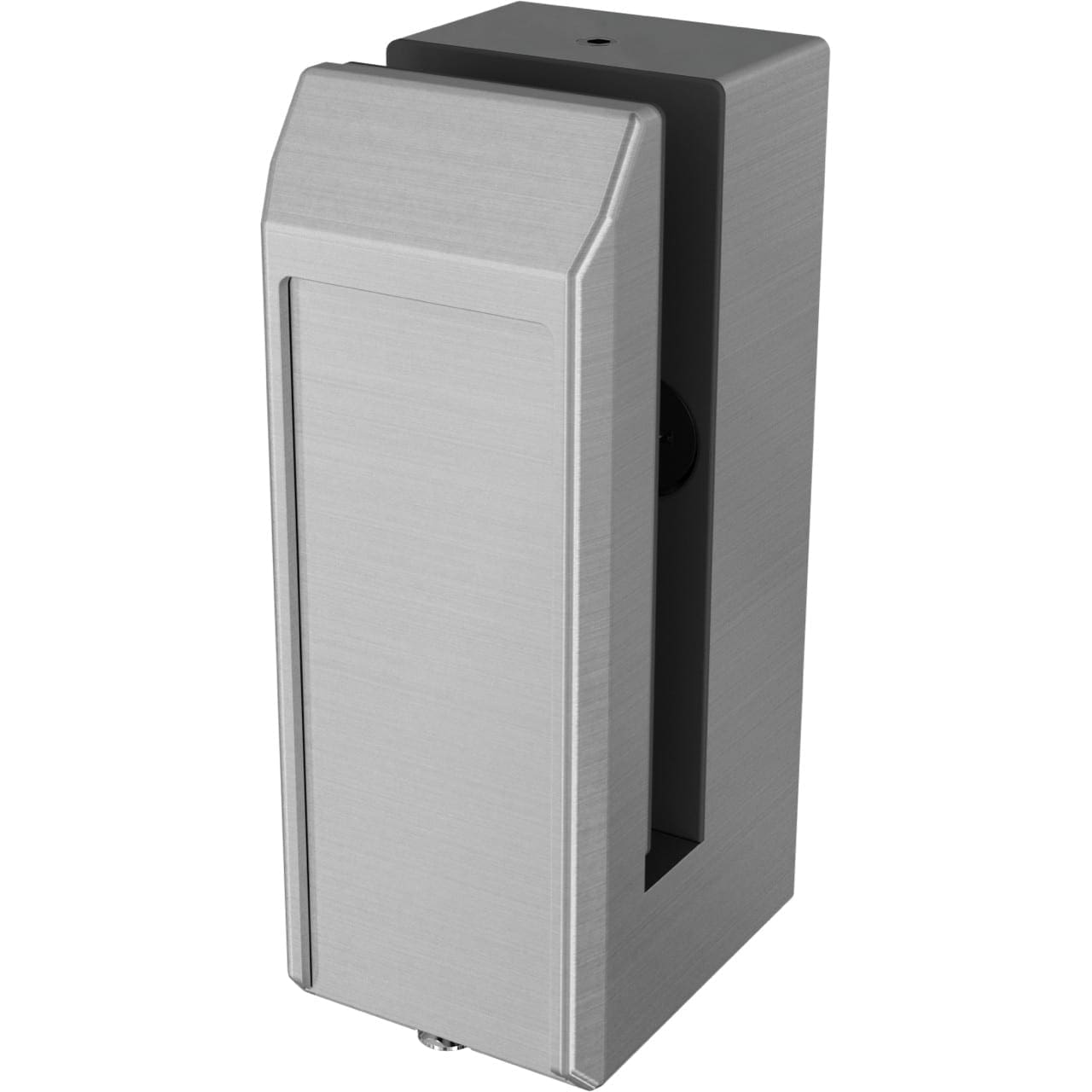

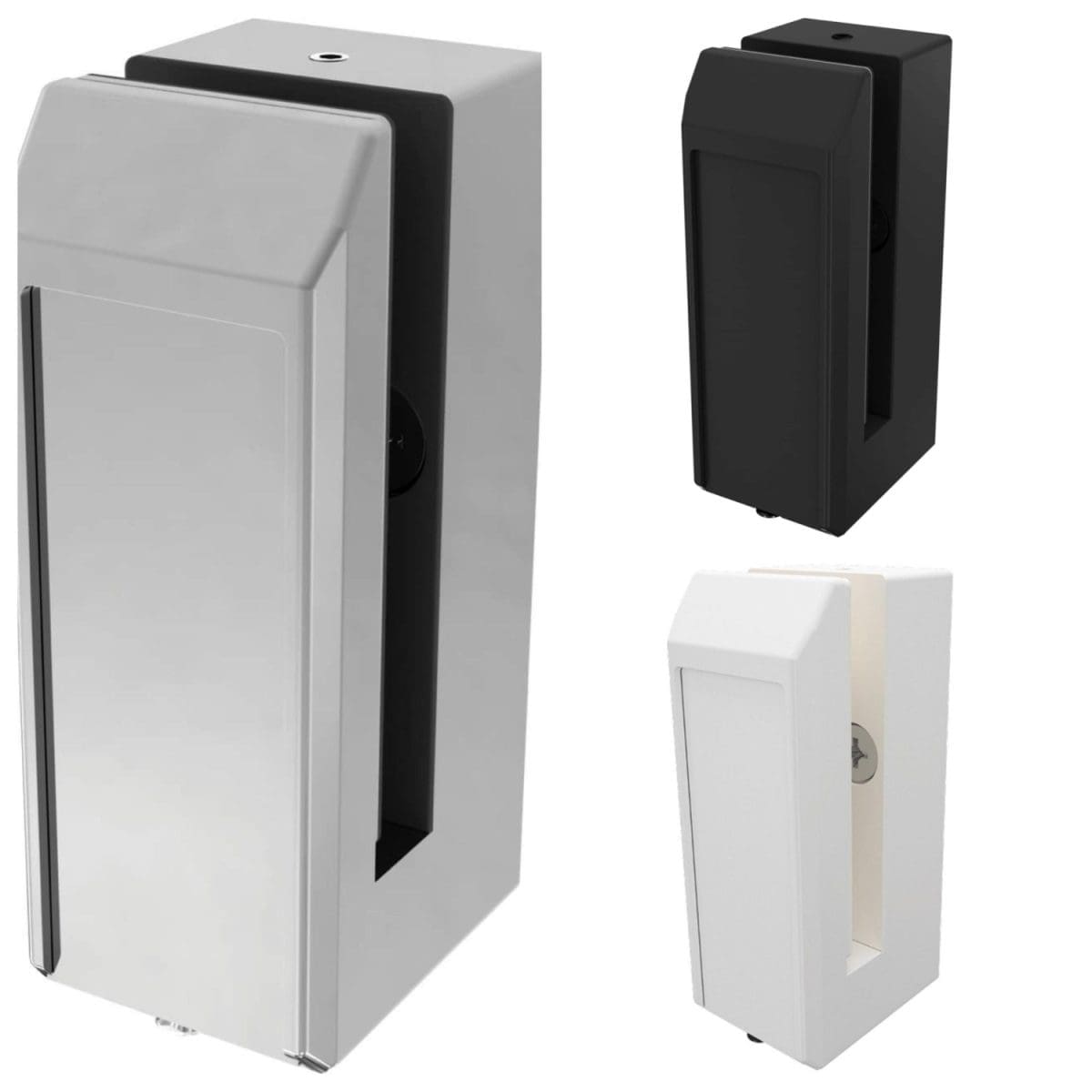

Available in Polish, Satin & Matt Black

Download Installation Instructions

• Duplex Stainless Steel 2205
• Face mount spigot – fix to vertical surface of concrete, timber/steel beams or bearers
• 2 part spigot for easy install: (1) rear plate fixed to vertical surface (2) spigot attaches to rear plate with 2 x M8 counter sunk screws
• Tilt Adjustable – innovative design allows for tilt adjustment by simply turning top & bottom M8 grub screws
• Glass alignment adjustability is a huge installation advantage
• Timber/beam fixing – 2 x fixing points in the rear plate for increased strength
• Concrete fixing – ideal for narrow slabs with 1 x sturdy M18 fixing
• Neat finish – slide in cover plate hides exposed screws on spigot front
• Earthing terminal included
• 3mm stackable horseshoe packers sold separately that can be inserted behind rear plate to overcome uneven vertical surfaces
