Madrid Deluxe Top Fix Spigot

Description

Madrid Deluxe Top Fix Spigot

2205 Stainless Steel – Ideal for narrow beam/PFC beam installations

Installation Guide

• Suitable for balustrade and pool fencing installation
• Top fix spigot installed with single central M12 fixing and specially machined nut
• Single central fixing ideal for narrow/PFC beams and slab installations
• No large core holes, dress rings or domical covers required

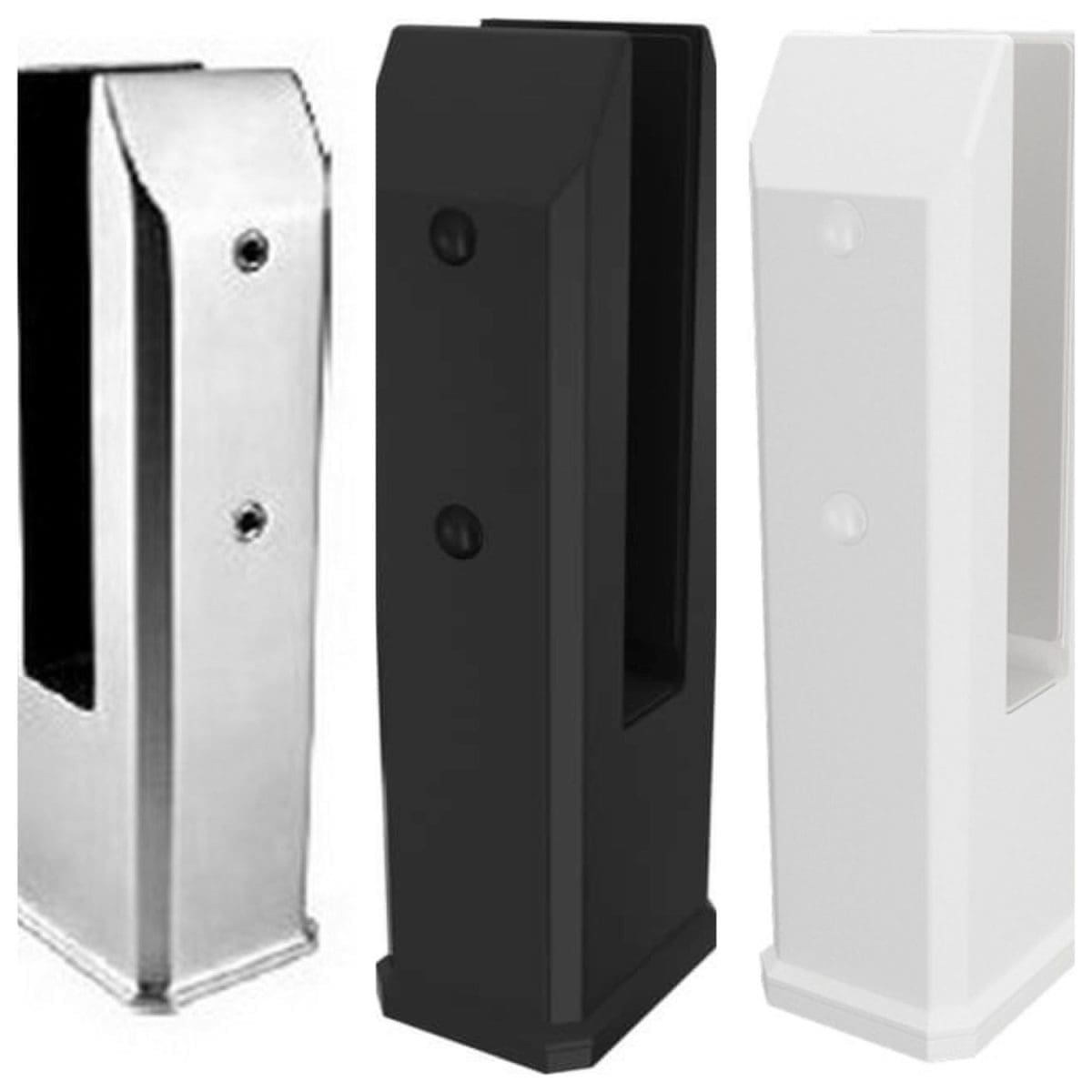

• Stainless Steel 2205 Spigot in polish or satin finish

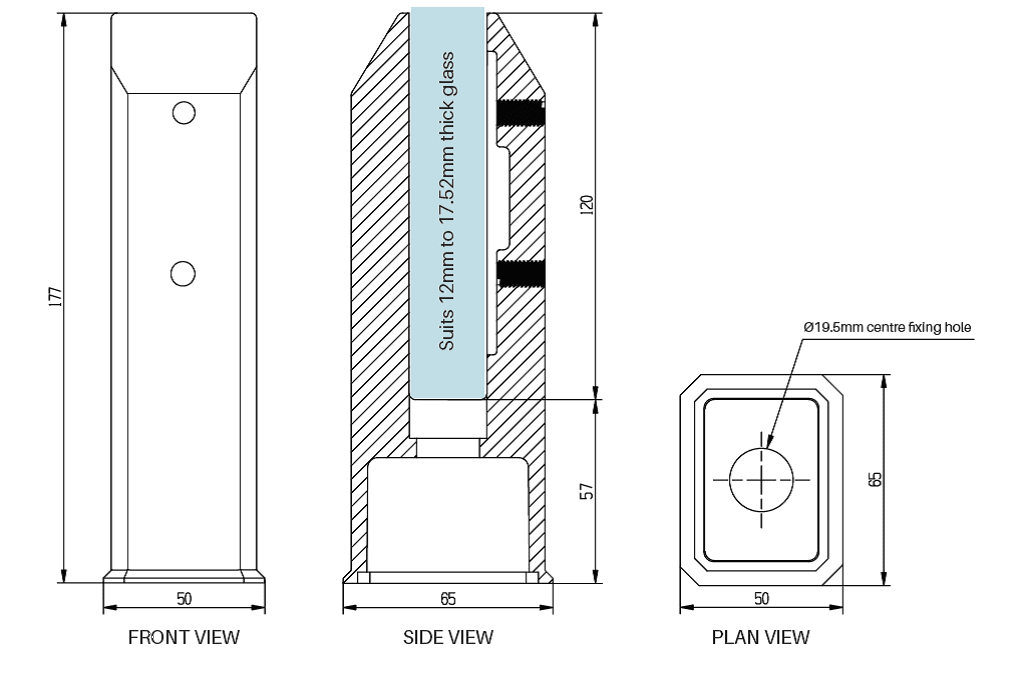

• 45mm front slimline profile x 65mm depth
• Suits 12mm up to 17.52mm glass
• Friction fit glass installation with recessed friction packer – no holes in glass required
• 120mm depth spigot mouth provides extra clamping strength and rigidity
• Packers included for glass sideways and tilt adjustment
• 5mm thick SS2205 height adjustment packer for uneven surfaces available in polish or satin finish (sold seperately)
