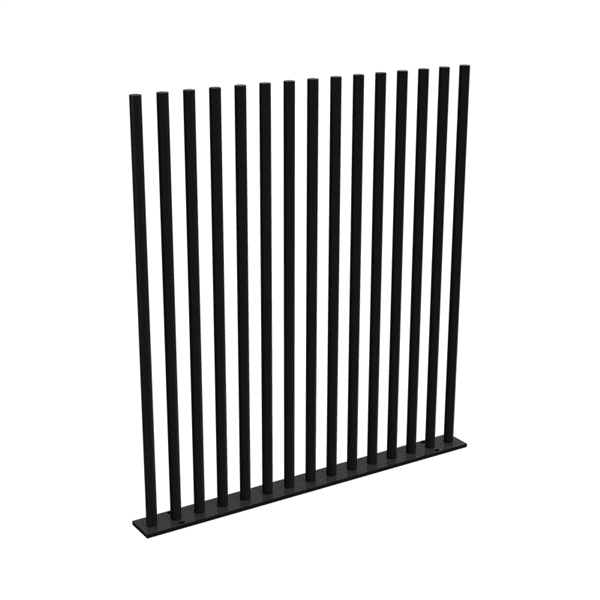

PIK® – Panel 1200mm W x 1280mm H

Description

PIK® – Panel

1200mm Wide x 1280mm High

Satin Black or Pearl White Finish

• Made from galvanised steel with epoxy base coast then powder coated
• Epoxy base coat provides excellent resistance to corrosion in addition to galvanised steel
• Vertical pickets are 32mm diameter (3mm wall thickness steel)
• Plinth is 1200mm long x 100mm wide x 12mm thick (6 x fixing holes per plinth)
• 1200mm wide panels may be butted up to each other to create continuous runs
• Vertical pickets are welded to plinth
• Pickets are at 80mm centre to centre (provides 48mm gaps)
• Pool fencing compliant to AS1926.1
• Each panel weighs 52kg
• Top cap pre-inserted into each picket

PIK Product & Installation Overview
