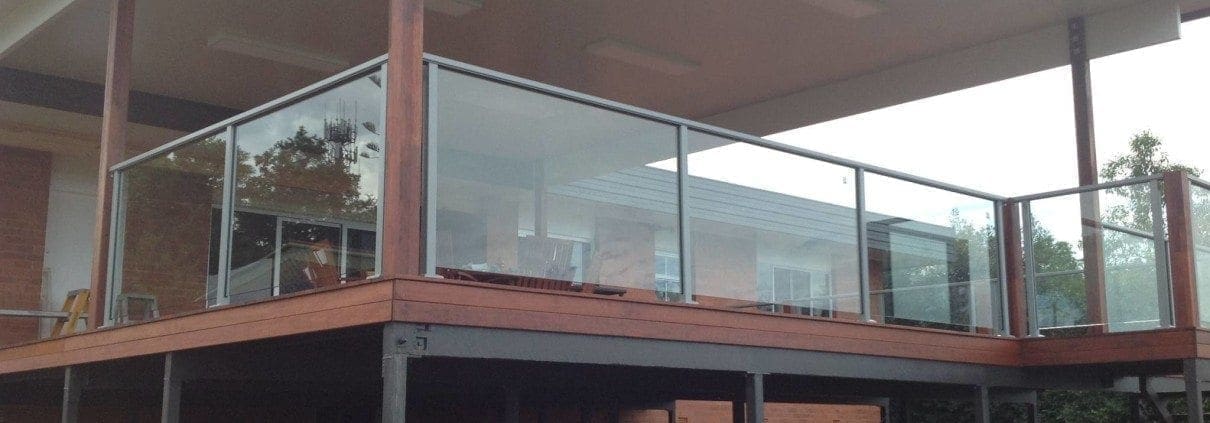

Our new series is a complete balustrade system which offers ease of installation as well as being visually stunning. Key features of the system include:
Post extrusions produced in Alloy Grade 6005A
6005A is a superior strength alloy which is stronger than the commonly used 6063 & 6060 grades. 6005A is often used in structural engineering projects.
Aluminium extrusions produced in accordance with AS/NZ 1866:1997
Extrusions produced to the chemical composition, mechanical proeprty and dimensional tolerances in AS/NZS 1866:1997
The glazing pockets are deep allowing for flexibility of installation
E.g. 1 Way post glazing pocket is 30mm deep
Captive wedge glazing system incorporated. This allows for increased speed of installation by requiring only the inner glass face to be manually glazed. This is particularly relevant for balustrade installations where safety considerations are paramount.
Screw flutes strategically incorporated into the glazing post enable a range of installation advantages such as being able to screw-fix a handrail. This system minimises need for welding.
All products have undertaken testing with NATA approved authorities to ensure compliance to load considerations are satisfied.
