Linear Drain Tile Insert
Linear Drain Tile Insert - Image 2
Linear Drain Tile Insert - Image 3
Linear Drain Tile Insert - Image 4

Product enquiry

Product categories

Linear Drain Tile Insert

$129.00 – $489.00 inc GST

Clear
SKU: N/A Category: Drainlab® - Linear Drains
  • Description
  • Additional information

Description

Linear Drain Tile Insert

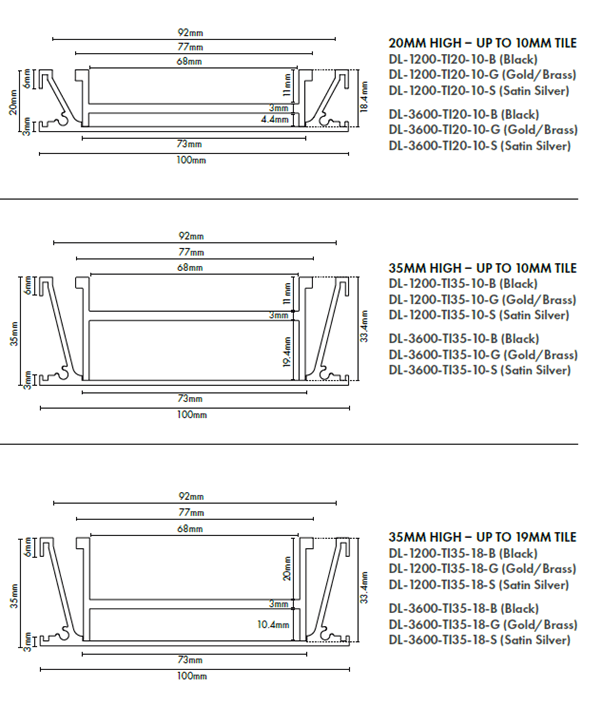

100mm WIDE x EITHER 1200mm or 3600mm LONG x 20mm or 35mm HIGH

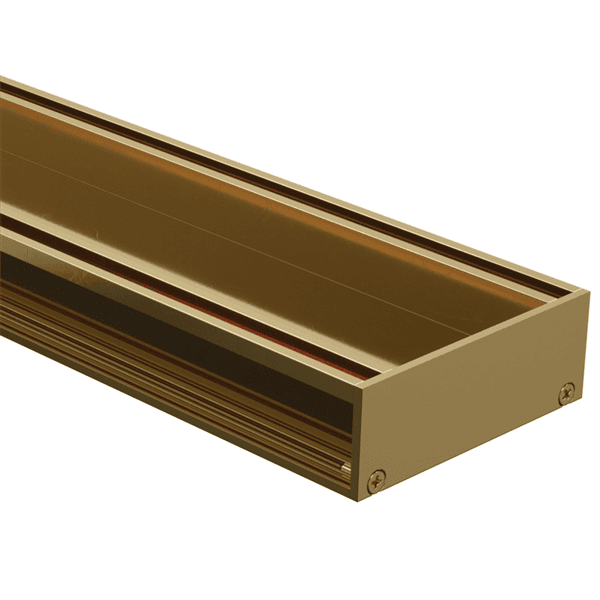

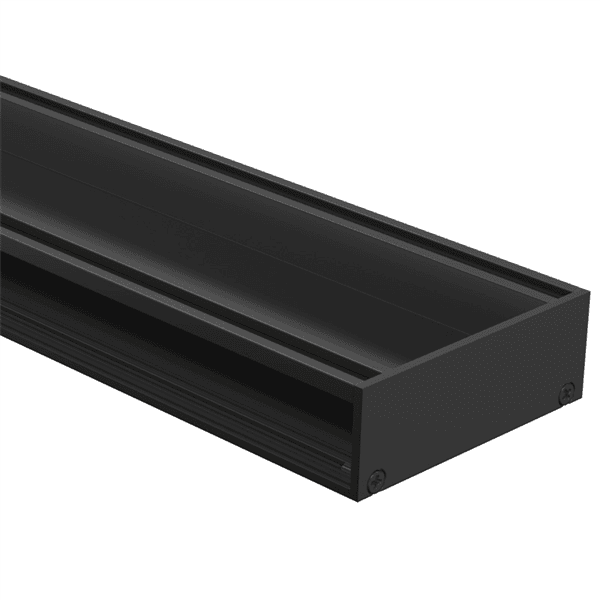

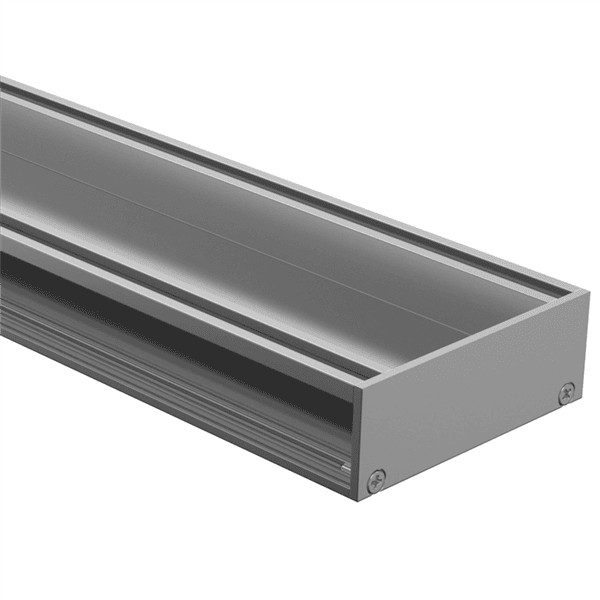

Available in Black, Gold/Brass & Satin Silver Finish

  • Brushed anodised aluminium finish
  • Complete kit includes: (1) tile insert profile (2) drain base (3) side inserts x 2 (4) end plates x 2 (5) countersunk SS304 fixing screws x 4
  • 10mm thick tile (or thinner) can be used with the 20mm high or 35mm high complete kits
  • 19mm thick tile (or thinner) can be used with the 35mm high complete kits
  • End caps are screwed on for enhanced water seal
  • Adjust length by trimming to size using drop saw with appropriate cutting blade
  • Self-cut drain hole at desired location

NOTE: Each length is supplied longer than the specified length to allow for trimming to exact size onsite (for 1200mm length, supplied approx. 60mm longer; for 3600mm length, supplied approx. 200mm longer)

Drainlab Tile Insert

Additional information

Height

20MM HIGH, 35MM HIGH

Finish

Black, Gold/Brass, Satin Silver

Length

1200mm Long, 3600mm Long

Tile Height

UP TO 10MM TILE, UP TO 19MM TILE
