Linear Drain Slotted Grate

Description

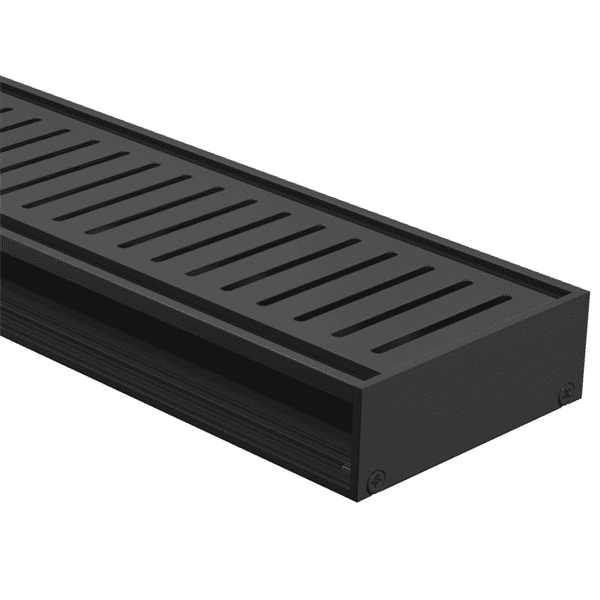

Linear Drain Slotted Grate

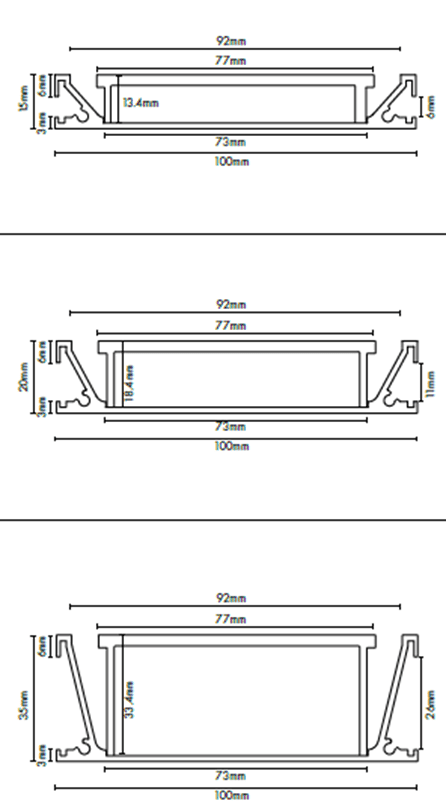

100mm WIDE x EITHER 1200mm or 3600mm LONG x 15mm, 20mm or 35mm HIGH

Available in Black, Gold/Brass & Satin Silver Finish

• Brushed anodised aluminium finish
• Complete kit includes: (1) slotted grate insert profile (2) drain base (3) side inserts x 2 (4) end plates x 2 (5) countersunk SS304 fixing screws x 4
• End caps are screwed on for enhanced water seal
• Adjust length by trimming to size using drop saw with appropriate cutting blade
• Self-cut drain hole at desired location
• Slotted grate spacing allows for easy water flow and a neat cut between perforations

NOTE: Each length is supplied longer than the specified length to allow for trimming to exact size onsite (for 1200mm length, supplied approx. 60mm longer; for 3600mm length, supplied approx. 200mm longer)
