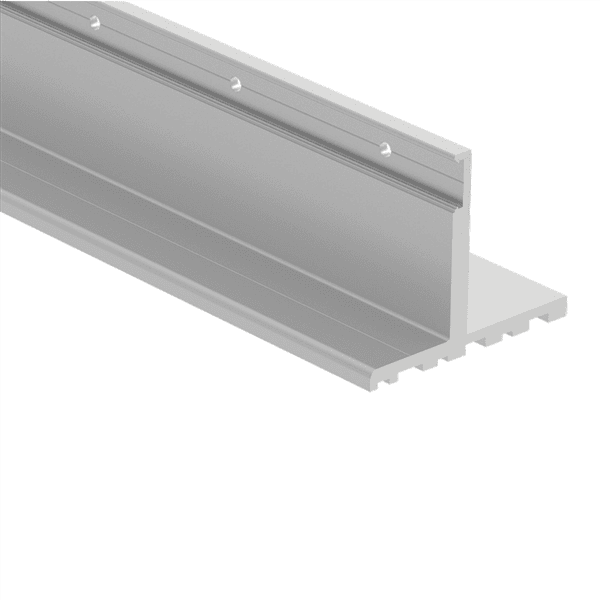

Visor™ – Aluminium Deck Mount ‘T’ Profile – 4000mm Long

Description

Visor™ – Aluminium Deck Mount ‘T’ Profile – 4000mm Long

Matt Black, Pearl White Matt or Mill Finish

• “T” profile deck mount base – 4000mm long
• Sturdy 10mm thick base – 10.5mm thick vertical profile

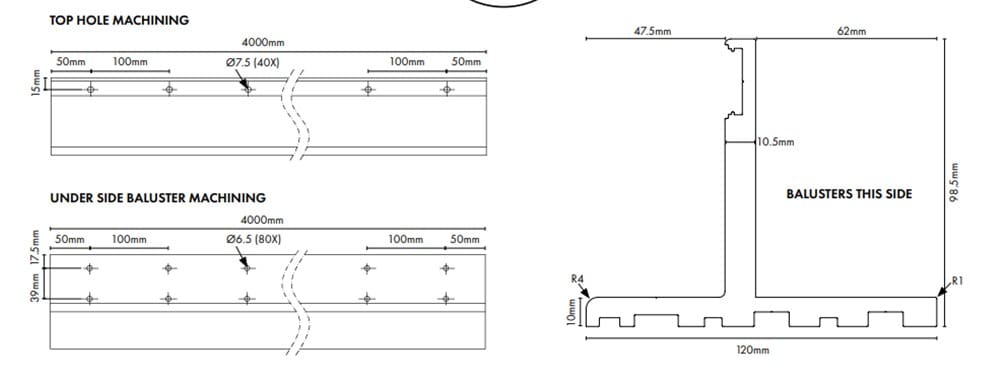

• Base fully machined to enable 50x10mm balusters to be screwed fixed at 100mm centres (providing 90mm gaps). 40 x balusters per length
• Holes are pre-machined entire length of base to enable each baluster to receive 2 x fixings from underside & 1 x side fixing

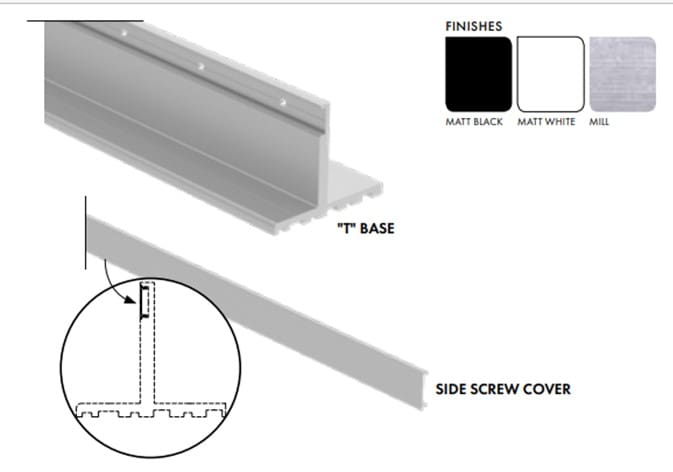

• 4000mm long screw fix cover extrusion included in kit: neatly hides top sideways screw fixings
• For fixing to substrate/floor, drill holes through deck mount profile where required (suggested at 500mm centres or less)
• Made from alloy 6063 T6
